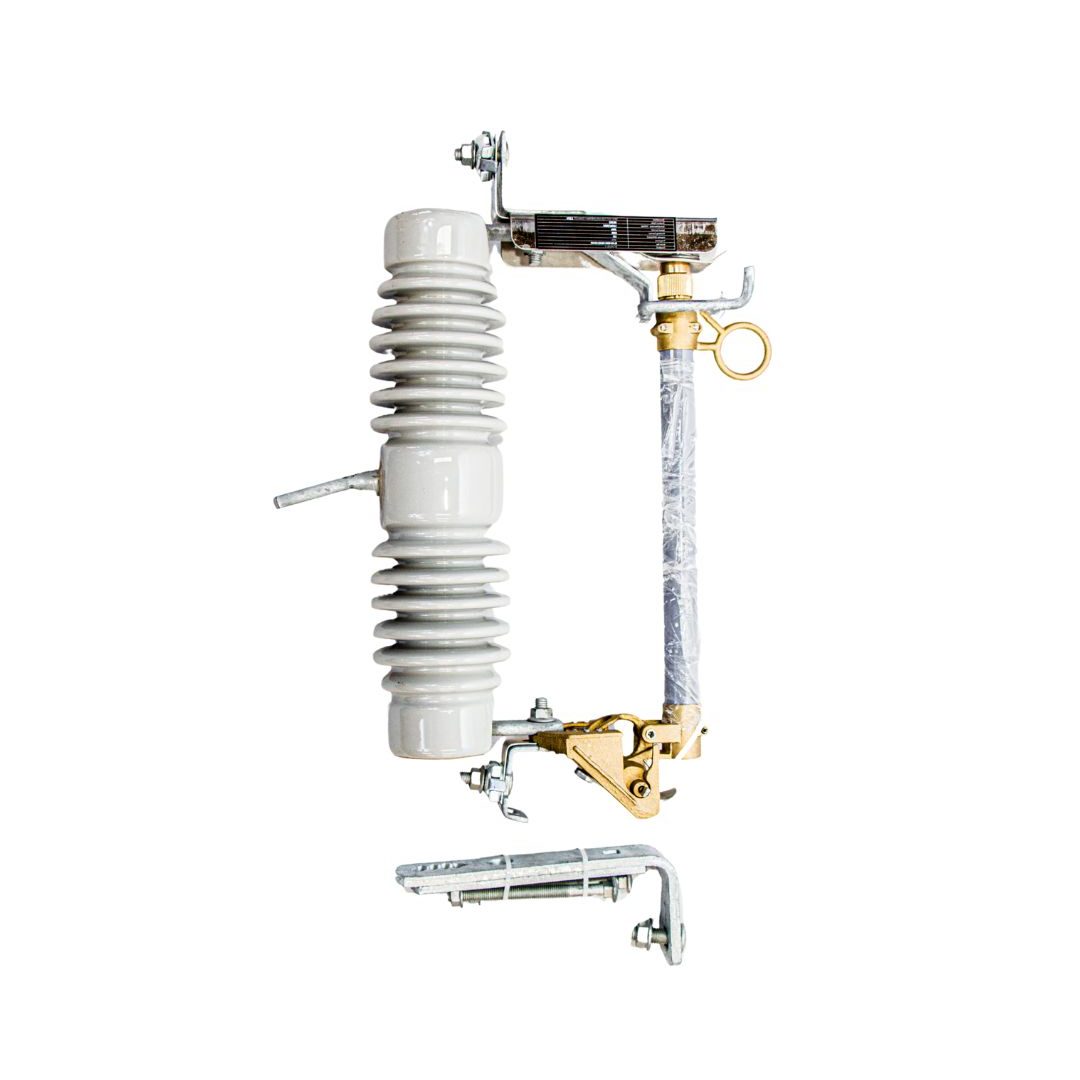

Click to zoomDrop Out Fuse Link Assembly
Drop Out Fuse Link Assembly 11kV
SKU DOF-11● In stock · ex-stock Lusaka
Specifications
| Rated Voltage kV | 11 |
|---|---|
| Rated Current A | 100/200 |
| Max Rated Current of Base | 300 |
| Breaking Current kA | 8/16 |
| Impulse Withstand Voltage Across Gaps kV BIL | 95 |
| Power Frequency Withstand Voltage kV | 40 |
| Leakage Distance | 320 |
Includes NEMA Bracket
IEC / SANS compliant Price on request Delivered from Lusaka
